iglidur® PRT universal glide elements

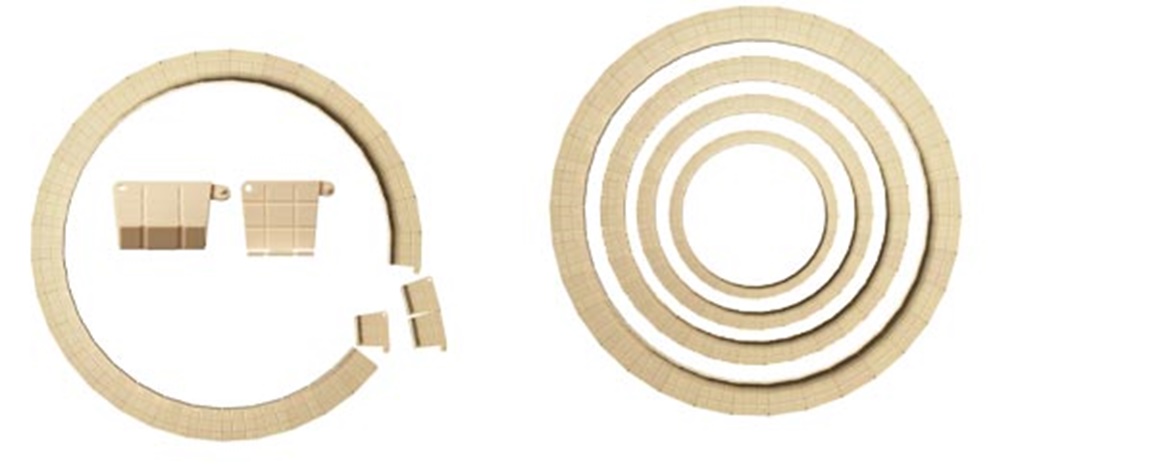

slewing ring system

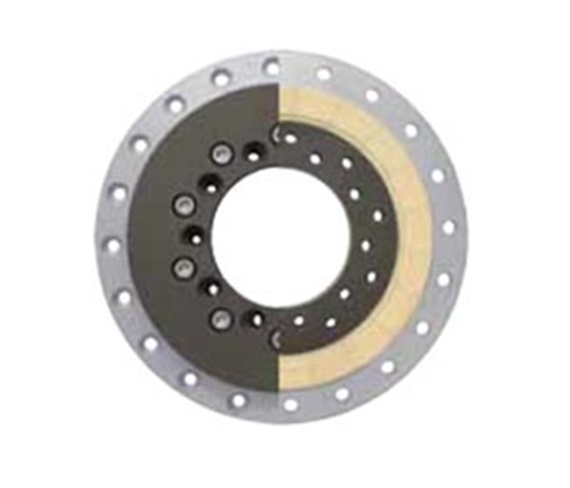

Universal glide elements – customise your own plain bearing supported rotary table systems

Using the versatile iglidur® PRT universal glide elements, large slewing ring systems can be modeled tailored to the type 01. Depending on the number of elements, rotary table systems can be implemented with inner diameters ranging from approx. 0.5 to 5m. – we will gladly support you with the design and detailed layout.

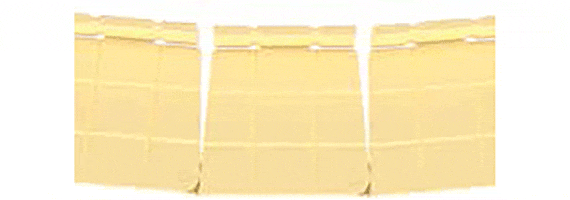

Universal gliding element, made from the proven iglidur® J

Customize your own slewing ring tables starting at 500 mm diameters and larger

Lubricant free

Maintenance-free

wear-resistant

Rugged

Resistant to corrosion


Typical applications:Solar industry, assembly equipment, fixture making

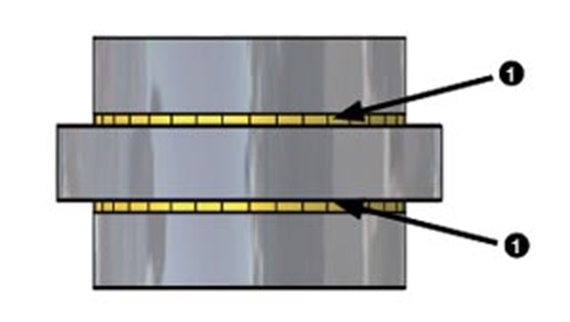

1. Glide element made of iglidur® J

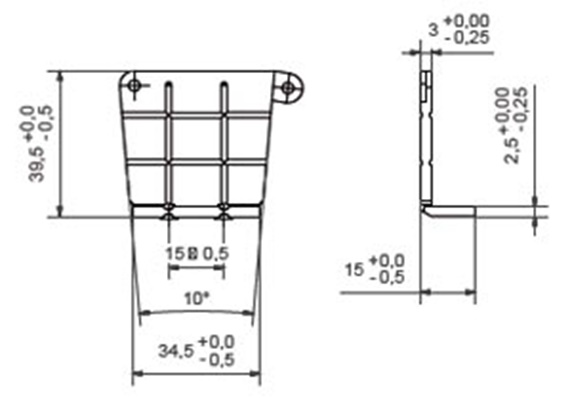

Part number: JRS-500S/45S

Material table

General features
Density 1,49 g/cm3
Colour yellow
Max. moisture absorption at 23 °C and 50 %r.h. 0,3 Wt.-%
Max. water absorption 1,3 Wt.-%

Mechanical properties
Max. permissible static surface pressure (+20 °C) 35 MPa
Shore D hardness 74

Physical and thermal properties
Max. long term application temperature 90°C
Max. short term application temperature 120°C
Lower application temperature –50°

Electrical properties
Surface resistance >1012 Ω

Ordering number
ready for shipping in 24-48 hours JRS-500S/45S 3,22 EUR Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog
loads up tp 10 tons
ready for shipping in 24-48 hours
