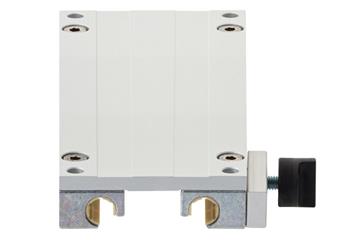

drylin WWC mono-slide carriage

Fast and easy installation
No alignment
Robust, hard-anodised aluminium
Different installation sizes

Design: square
Material sliding element: iglidur® J
Material: Aluminium

Unsure whether it fits?

Expert system

Download CAD files

Free sample request

drylin® linear guides sample box

Discover and try out solutions for your application.

Contact to the linear technology Support

Your expert for linear technology

Product description

Easy installation, no alignment
With the WWC mono-slide carriage the easy assembly of the drylin W linear carriages is made even easier. No individual pillow blocks due to anodised aluminium carriages.

Tech up:

Extremely fast assembly of drylin® W linear carriage on drylin® W double rails
Monobloc made of aluminium for robust handling
Suitable for drylin® W profile rail WSQ-06-60
Sliding elements made from iglidur® J for long-lasting operation
In three lengths, available ready-to-install: 60/80/100mm

Cost down:

Save installation time with a ready-to-install design
No mounting or alignment
Save storage space - one component instead of nine (for standard linear carriages)
Reduced design effort with PDF and CAD file available in the online shop

Proof:

12% lower installation height than standard
Corrosion-resistant thanks to clear anodising
Tested: WWC carriage, installation size 06, load 80N, acceleration 3m/s², rail length 2,000mm, running performance 5,000km or 2.5 million double strokes of 1,000mm each

Sustainability:

Lubrication-free operation
Maintenance-free due to self-lubricating high-performance polymers from igus®
Lightweight components such as plastic and aluminium

Technical data
