Energijske verige za posebne rešitve
Categories
Filter
System
Requirements
Application areas
Products for 3D movements
e-spool® flex - uninterrupted panel feed | with housing | Extension length 5-15m
- No slip ring: No contact wear due to corrosion, contamination, or sticking.
- Without interruption (no slip ring), for energy,
data, fluids and air - Service life of up to 10,000 cycles
- Space-saving
- Universal assembly
- Constant tensile strain on the cable
- Available in various versions: with hand crank (H), return spring (SP or SB), and inlet brake (SB).
806,36 EUR/Pc.
9 izdelkov, od katerih je na voljo za odpošiljanje iz Nemčije:
9 v 72 urah
To the product page
ESD energy chains
Openable energy chains with mounting brackets and interior separation in electrically conductive ESD material available from stock.
Upon request
To the product page
guidelok horizontal - upper run guide
Unhindered travel: no swarf can settle between the sliding surfaces of the upper and lower runs of the energy chain.
Upon request
To the product page
guidelok slimline P/PS - vertical guide
- Up to 7m/s and 10m/s2
- Up to 80% less trough required, saving cost and weight
- For hanging systems up to 50m
Upon request
To the product page
E4/4HD – long travels or "side-mounted"
Energy chains and tubes openable from both sides. Inner heights of 32 to 80mm. Especially suitable for "side-mounted" and travel distances of over 200m.
Upon request
To the product page
Hybrid energy chain YE.42
50% stronger than pure plastic energy chains* and 50% lighter than pure steel energy chains*. No rivets, no screws. Energy chain links openable quickly, for easy cable replacement.
- Inner height hi: 42mm
- Outer height ha: 76mm
- Inner widths Bi: 50 - 400mm
- Outer width Ba: 68 - 418mm
- Bend radii R: 100mm
- Pitch: 67mm
13,13 EUR/Pc.
32 izdelkov, od katerih je na voljo za odpošiljanje iz Nemčije:
32 v 72 urah
To the product page
Hybrid energy chain YE.56
50% stronger than pure plastic energy chains* and 50% lighter than pure steel energy chains*. No rivets, no screws. Energy chain links openable quickly, for easy cable replacement.
- Inner height hi: 56mm
- Outer height ha: 90
- Inner widths Bi: 50 - 600mm
- Outer width Ba: 74 - 624mm
- Bend radius R: 100 - 500mm
- Pitch: 91mm
24,01 EUR/Pc.
41 izdelkov, od katerih je na voljo za odpošiljanje iz Nemčije:
41 v 72 urah
To the product page
AX e-chains® series
Exterior stop-dogs prevent the accumulation of dust. All existing widths can be combined.
Upon request
To the product page
e-skin® corrugated tube
- Space requirement: 80 - 200mm
- Bend radius: 40 - 55mm
- Unsupported length: depends on the guided cables
Upon request
To the product page
rol e-chain® system
Long travels and very high traversing speed As an energy chain with crossbars every link or as an enclosed e-tube.
Upon request
To the product page
e-spool: multi-energy coil
The alternative to a cable reel – reduce cable wear and reliably guide different media.
Upon request
To the product page
AUTO-GLIDE series: special solutions for long travels
Combination of AUTO-GLIDE and easy chain® energy chains, E2/000 system and E4.1. system.
Upon request
To the product page
Guidelite plus - trough system
Chemical-resistant and corrosion-resistant plastic guide trough system
Upon request
To the product page

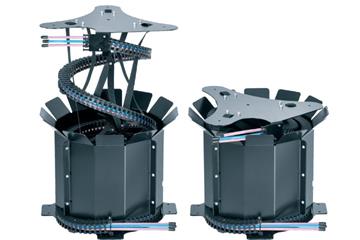

liftband - vertical guide
- For high vertical applications that need a compact solution
- Modular, quiet, space-saving
- Maximum extension length 13m
- Available in 2 sizes
- Alternative to zig-zag solutions, but lighter and requires less installation space
Upon request
To the product page

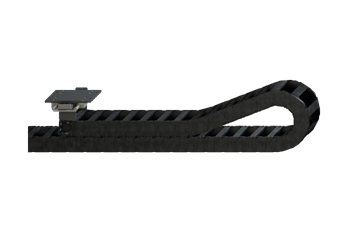

FTA floating moving end
Compensation of parallel errors in the case of long travels. Small, lightweight and cost-effective.
Upon request
To the product page
