ZF14 system, cable chain, easy design, push in cables along the inner radius

  • Inner height hi: 21mm
  • Inner width Bi: 38mm
  • Bend radii R: 28mm
  • Pitch: 30.5mm
  • Design: Simply press cables in along the inner radius

Unsure whether it fits?

Download CAD files
Product description
The ZF14 cable chain was specially designed and developed for the furniture industry. Cables are inserted quickly, energy chain fixed quickly, beautiful design and everything tidy.

Special product specifications:
  • Aesthetic design
  • Closed outer sides (half-tube)
  • Mounting brackets easy to clip on
  • Easy to fill, even when installed with "easy" design
  • Cable-friendly due to smooth interior
  • UL94-V2-certified
  • Mounting brackets can be either screwed or bonded due to the large flat surface on the bottom
Typical industrial sectors and applications
Electrically adjustable furniture, other applications without high dynamic movements
Technical data
Accessories
Downloads

Other solutions

OCR cable guide for height-adjustable desk | round | with magnetic assembly clips
OCR cable guide for height-adjustable desk | round | with magnetic assembly clips

Simply press in or pull out cables with "easy" design

0,86 EUR/Chain link

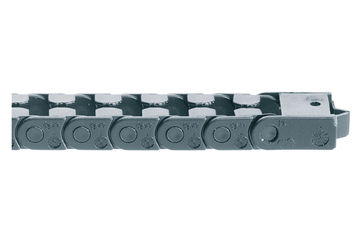

easy chain® Series E03, energy chain, to be filled at the outer radius
easy chain® Series E03, energy chain, to be filled at the outer radius

Inner height hi: 5mm, inner widths Bi: 5 - 10mm, bend radii R: 10 - 28mm, pitch: 10mm

0,31 EUR/Chain link

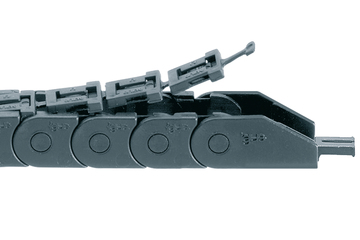

zipper Series 047, energy chain, zip-open along the outer radius
zipper Series 047, energy chain, zip-open along the outer radius

Inner height hi: 9mm, inner widths Bi: 10 - 16mm, bend radii R: 18 - 38mm, pitch: 13mm

0,76 EUR/Chain link
