Nadzor motorja

Sistem za kontrolni sistem motorjev igus® D1 in D2 se lahko uporablja za vse tip motorjev. Z izjemo igusovega sistema za kontrolni sistem motorja D3 , lahko vsi delujejo pri 48 V. Igusov sistem za kontrolni sistem motorja D3 deluje s 24 V. Sistemi za krmiljenje motorjev D3, D7, D8 in D9 so namenjeni enostavni avtomatizaciji neposredno na kontrolni sistem in zato ne potrebujejo programske opreme in/ali osebnega računalnika. Sistema za kontrolni sistem motorja igus® D1 in D2 prav tako ne zahtevata namestitve dodatne programske vgradnja, ampak se programira s pomočjo spletnih iskalnikov. Na ta način je mogoče parametre parametrirati na osebnem računalniku, pa tudi na tablici in pametnem telefonu. Za to ni potrebno znanje programiranja. Vse izhodne stopnje lahko delujejo tudi kot podrejene, zaradi česar so vsestranske.

List
Tile

Number of products: 9

drylin® D7- (X) stepper motor output stage
drylin® D7- (X) stepper motor output stage
  • Suitable for 28 - 42mm motor flange size (NEMA11-17)
  • Up to 3A peak current
  • 5-24V control & 24-48V load voltage
  • Operation mode 1: clock/direction
  • Operation mode 2: D7 & D7-1: jog mode; D7-2& D7-3: loop mode
  • Quiet operation & automatic tuning
96,34 EUR/Pc.
4 items, thereof ready for shipping from Germany:
4 in 24-48 hours
To the product page

drylin® D8- (X) stepper motor output stage
drylin® D8- (X) stepper motor output stage
Product information
  • Without connecting cable
  • Set consists of 3x drylin® D8

  • Can control stepper motors with a continuous current of up to 4A with a supply voltage of up to 48V
  • Ready to use immediately
  • Easy control
  • Exact positioning
118,20 EUR/Pc.
4 items, thereof ready for shipping from Germany:
4 in 24-48 hours
To the product page

drylin® D2 motor control system for stepper, DC and EC/BLDC motors
drylin® D2 motor control system for stepper, DC and EC/BLDC motors
  • A wide range of automation tasks by simple parameterisation, no programming necessary
  • For single axes, line, flat, linear and room linear robots and delta robots
  • No software installation or app required
  • Use with PC, tablet or smart phone
  • Stepper (ST), DC and EC/BLDC motors with up to 21A peak currents and 48V
  • Digital inputs/outputs, analogue inputs, CANopen, ModbusTCP (CANopen Gateway) for connection to master control systems such as Siemens or Beckhoff

The drylin® D1 motor control system and the D2 are identical except for the housing.
521,17 EUR/Pc.
1 items, thereof ready for shipping from Germany:
1 in 24-48 hours
To the product page

drylin® D9- (X) stepper motor output stage
drylin® D9- (X) stepper motor output stage
  • Suitable for 86mm motor flange size (NEMA34)
  • Up to 9.8A peak current
  • 5-24V control & 24-48V load voltage
  • Operation mode 1: clock/direction
  • Operation mode 2: D7 & D7-1: jog mode; D7-2& D7-3: loop mode
  • Quiet operation & automatic tuning
129,55 EUR/Pc.
4 items, thereof ready for shipping from Germany:
4 in 24-48 hours
To the product page

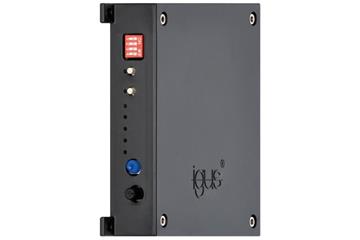

drylin® D3 for direct current motors
drylin® D3 for direct current motors
  • Simple automation directly using the control system without software and/or PC
  • Operation with limit switch or via power consumption
  • Left/right operation and speed control directly on the housing
  • Option for external switches/joysticks
  • Various modes of operation, such as tip operation and start to finish (semi-automatic)
  • Various adjustable acceleration ramps
  • Power supply via 24V/2.5A

    All relevant documents for dryve D3 can be found in the downloads.
182,55 EUR/Pc.
1 items, thereof ready for shipping from Germany:
1 in 24-48 hours
To the product page

drylin® D3-LM motor control system for DC motors with loop mode
drylin® D3-LM motor control system for DC motors with loop mode
  • Same dimensions as the standard D3
  • Extended functions for "Micro Automation"
  • Individually preprogrammed pendulum movements
  • Individually preprogrammed pause times between movements
Upon request
1 items, thereof ready for shipping from Germany:
1 in 10 working days
To the product page

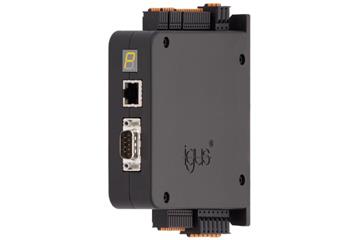

drylin® D1 motor control system for stepper, DC and EC/BLDC motors
drylin® D1 motor control system for stepper, DC and EC/BLDC motors
  • A wide range of automation tasks by simple parameterisation, no programming necessary
  • For single axes, line, flat, linear and room linear robots and delta robots
  • No software installation or app required
  • Use with PC, tablet or smart phone
  • Stepper (ST), DC and EC/BLDC motors with up to 21A peak currents and 48V
  • Digital inputs/outputs, analogue inputs, CANopen, ModbusTCP (CANopen Gateway) for connection to master control systems such as Siemens or Beckhoff

    TEST BEFORE INVEST - Try out the motor control system with online simulation here before you buy
537,85 EUR/Pc.
1 items, thereof ready for shipping from Germany:
1 in 24-48 hours
To the product page
New

drylin D5 DC motor output stage
drylin D5 DC motor output stage
drylin D5 DC motor output stage
  • Ready for immediate use. No parameterization or programming necessary
  • Left/right run via digital input
  • Velocities & accelerations via external PWM input signal
  • 12-24V supply voltage
  • 10A nominal current / 30A peak current
  • With housing for industrial use
  • Free pattern programs here
134,27 EUR/Pc.
1 items, thereof ready for shipping from Germany:
1 in 24-48 hours
To the product page
New

drylin D6 DC motor output stage
drylin D6 DC motor output stage
drylin D6 DC motor output stage
  • Ready for immediate use. No parameterization or programming necessary
  • Left/right run via digital input
  • Velocities & accelerations via external PWM input signal
  • 12-24V supply voltage
  • 10A nominal current / 30A peak current
  • With housing for industrial use
  • Free pattern programs here
121,34 EUR/Pc.
1 items, thereof ready for shipping from Germany:
1 in 24-48 hours
To the product page
