SHTP-FF lift table with quick release

SHTP lift tables with quick-release mechanism offer a combination of precise positioning and rapid adjustment by hand.

lighter solid polymer model

For fast format adjustments

Brake by interlocking included

Freely selectable stroke lengths

Recommended only for horizontal applications

Max. stat. axial load 200 N

Max. dyn. axial load 50 N

SHTP-FF

Fitting for this articles:

drylin® E - product overview

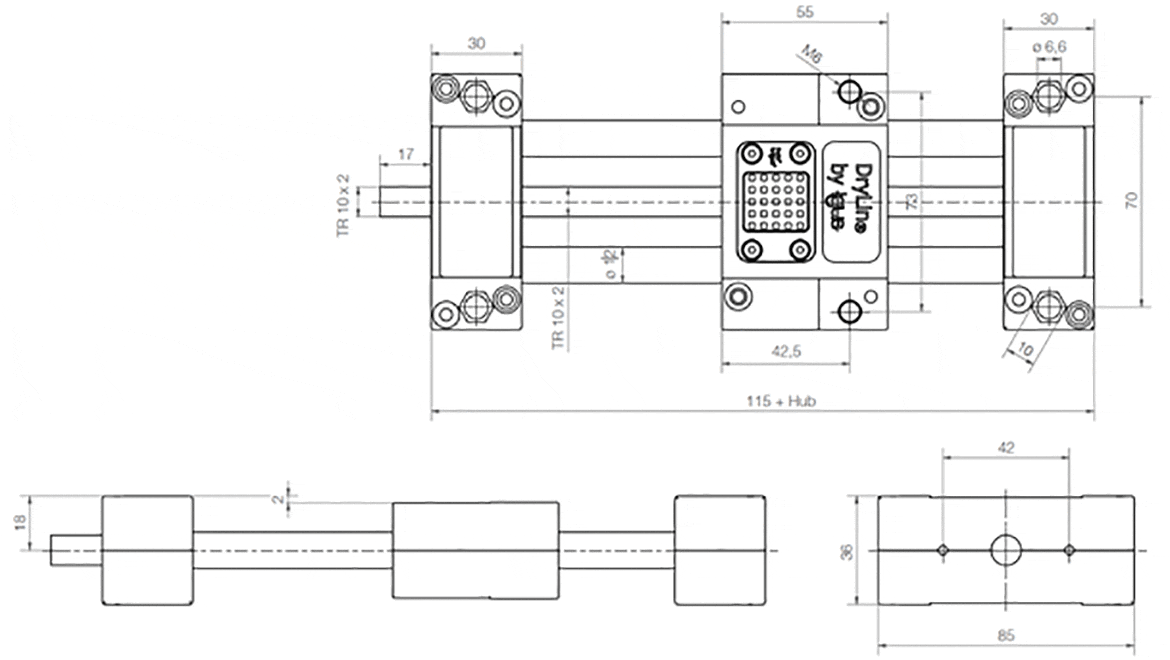

Part. No. A Al H E1 E2 E3 l R f lt tk ts kt
  -0,3 -0,3   ±0,15 ±0,15 ±0,15 [mm] [mm] [mm] ±0,1 ±0,1
ready for shipping in 10 working days SHTP-01-12-AWM-FF (1) 85 55 36 70 73 42,5 115 42 2 30 10 6,6 0
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

(1) Liners and trapezoidal leadscrew nut made of iglidur® J

Part. No. sg d T l2 d2* ha Max.
stroke length 		Weight Weight additional


          standard   [mm] [kg] per 100 mm
ready for shipping in 10 working days SHTP-01-12-AWM-FF (1) M6 12 17 TR10x2 18 500 0,35 0,11 Upon request Add to shopping cart
More about selected part:
3D-CAD 3D-CAD
Sample request Sample request
PDF PDF
Quote request Quote request
myCatalog myCatalog

(1) Liners and trapezoidal leadscrew nut made of iglidur® J

More information:

drylin® - System selection & Lifetime calculation
