Number of products: 7

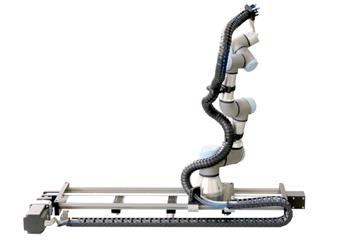

7th axis for Universal Robots up to 0.3m/s
7th axis for Universal Robots up to 0.3m/s
Product information
  • Up to 4 times more workspace for robots
  • Stroke lengths up to 3000 mm, other strokes upon request
  • Repeatability ±0.3 mm
  • Speed up to 0.3 m/s

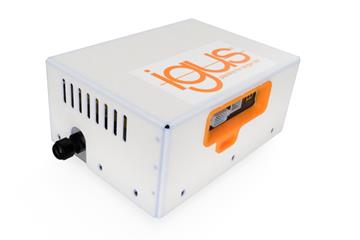

  • Kinematics can be controlled via UR Cap
  • Suitable for Universal Robots: UR 3, UR 5, UR 10, UR 16, robolink® DC and DCi

Optionally available
Upon request
To the product page

7th axis for Universal Robots up to 0.6m/s
7th axis for Universal Robots up to 0.6m/s
Product information
  • Up to 4 times more workspace for robots
  • Stroke lengths up to 3000 mm, other strokes upon request
  • Repeatability ±0.3 mm
  • Speed up to 0.6 m/s
  • Kinematics can be controlled via UR Cap
  • Suitable for Universal Robots: UR 3, UR 5, UR 10, UR 16

Optionally available
Upon request
To the product page

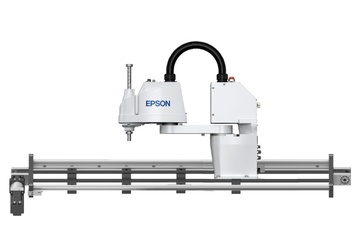

7th axis for EPSON
7th axis for EPSON
Product information
  • Up to 4 times more workspace for robots
  • Stroke lengths up to 3000 mm, other strokes upon request
  • Repeatability ±0.3 mm
  • Speed up to 0.3 m/s
  • Kinematics can be controlled via Epson software
  • Suitable for Universal Robots: T3, T6, VT6

Optionally available
Upon request
To the product page

7th axis for ReBeL (igus Robot Control Version)
7th axis for ReBeL (igus Robot Control Version)
Product information
  • Up to 4x more work space for your robot is child's play
  • Simply add it as an external axis in the igus Robot Control and start
  • Lifting paths up to 3000 mm, other strokes on request
  • Repeatability ± 1.5 mm
  • Speed up to 0.3 m/s
  • Suitable for igus ReBeL 4, 5 & 6DOF
Upon request
To the product page

7th axis for robolink DP
7th axis for robolink DP
Product information
  • Up to 4 times more workspace for robots
  • Stroke lengths up to 3000 mm, other strokes upon request
  • Repeatability ±0.3 mm
  • Speed up to 0.3 m/s
  • Kinematics can be controlled via igus® Robot Control
  • Suitable for igus® robolink®: RL-DP-4, RL-DP-5

Optionally available
Upon request
To the product page

7th axis for all robots
7th axis for all robots
Product information
  • Up to 4x more working space for robots
  • Strokes up to 3000 mm, further strokes on request
  • Repeatability ± 0,3 mm
  • Speed up to 0,3 m/s
  • Kinematics will be controlled via digital I/Os
  • Suitable for igus robolink, Epson, Universal Robot, Omron, Franka Emika, Doosan, Kawasaki, ABB, Fanuc, Kuka, etc.

Optionally available
Upon request
To the product page

7th axis for ReBeL (DIO Version)
7th axis for ReBeL (DIO Version)
Product information
  • Up to 4x more working space for robots
  • Strokes up to 3000 mm, further strokes on request
  • Repeatability ± 0,3 mm
  • Speed up to 0,3 m/s
  • Kinematics will be controlled via digital I/Os
  • Suitable for igus ReBeL

Optionally available
Upon request
To the product page
