Cleanroom-compatible energy supply for high-speed SCARA applications

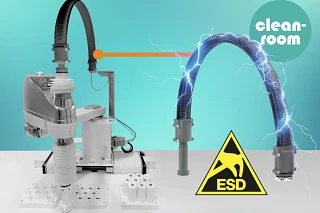

  • Clean SCARA Cable Solution in ESD (study)

    • Based on the experience gained from the SCARA Cable Solution developed in 2020, a certified cleanroom variant is now also available - the Clean SCARA Cable Solution. The optimised swivel-mounted connections enable use up to ISO Class 2 (IPA certified). In combination with the e-skin® design SKS20, which has been tried and tested in the highest cleanroom class, highly dynamic applications can also be realised. The proven zipper opening principle of the SKS20 enables quick and easy cable filling. The new Clean SCARA Cable Solution is available in all existing connections of the Standard SCARA Cable Solution.

    Clean SCARA Cable Solution

    Reasons for using the Clean SCARA Cable Solution

    Tech up triangle

    Tech up

    • Cleanroom-compatible system, easy to retrofit
    • Safe guidance of cable and hose in the cleanroom
    Cost down triangle

    Cost down

    • Easy filling of the e-skin® SKS20 thanks to the proven zipper opening principle
    • High running performance
    • All components are individually replaceable
    • Reduction of downtimes
    Proof square

    Proof

    • IPA certificate ISO class 2
    • More than 2,000,000 test cycles realised in the igus® test laboratory
    Sustainability circle

    Sustainability

    • Individual cables can be swapped
    • Extremely high downtime ensures less waste

    Presentation of the Clean SCARA Cable Solution

    Thanks to the excellent specifications of the e-skin in the cleanroom, the Clean SCARA Cable Solution directly fulfils the cleanroom ISO Class 2 classification. This opens up new possibilities in the field of SCARA robotics for using one of these robots in the cleanroom.
    The rotating bearing function of the standard SCARA Cable Solution has been adopted and adapted to the e-skin energy supply. This means that the two SCARA Cable Solutions cannot be combined with each other.

    The cleanest solution for operating a SCARA robot in the cleanroom!

    Components of the Clean SCARA Cable Solution

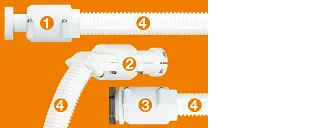

    Clean Scara Cable Solution end pieces and hose

    The SCARA cable solution also consists of three elements matching or adapted to the SCARA robot in question.

    1. Pivot bearing moving end: TR.CSCS.20.01.20.94.01.1

    2. Pivot bearing moving end 45° angled: TR.CSCS.20.01.20.94.02.1

    3. Pivot bearing fixed end: TR.CSCS.20.02.40.01.1

    4. Cleanroom energy chain e-skin® soft: SKS20.033.02.1

    Buy pivot bearing moving endBuy pivot bearing moving end 45° angledBuy pivot bearing fixed endBuy cleanroom energy chain

    Part codes Clean SCARA Cable Solution

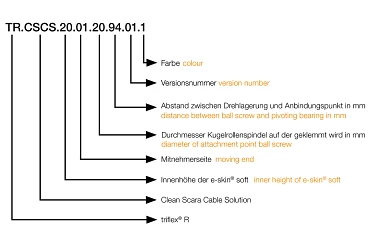

    Part number ball screw Clean SCARA Cable Solution

    Moving end (1)

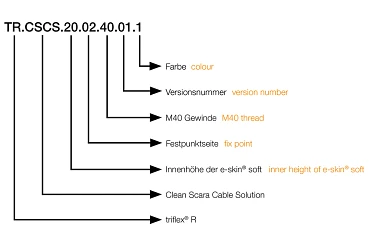

    Part code fixed end side

    Fixed end (2)

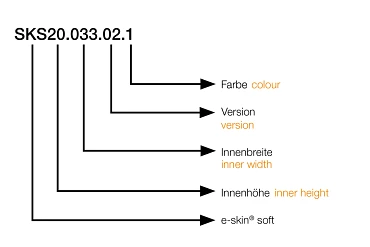

    e-skin part code

    Centre piece (3)

    Tech up triangle

    Tech up

    • Cleanroom certified - CSCS design
    • ESD certified - SCS ESD material
    • Safe guide for cables and hoses in ESD cleanroom environments
    Cost down triangle

    Cost down

    • Compatible with all existing attachments from the SCARA Cable Solution series
    • Reduction of downtimes
    • High running performance
    Proof square

    Proof

    • Developed and tested in the igus laboratory
    Sustainability circle

    Sustainability

    • igus Chainge recycling programme
