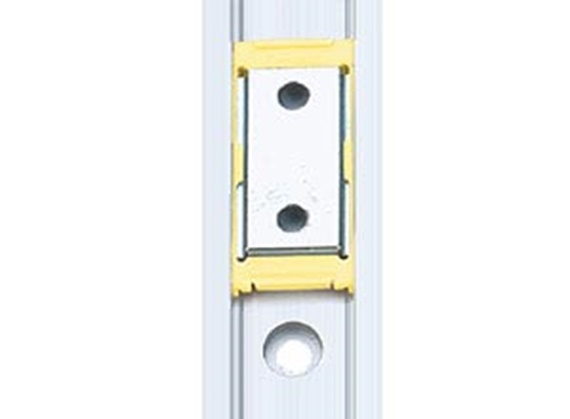

drylin® N - Low profile linear guide system NK-01-27

Order no.	Max. rail lengths	a	C4	A3	C5=C6		h	h1	K1*	ly	lz	Weight of rail	Price / m
	[L max.]				Min.	max.				[mm²]	[mm²]	[g/m]
NS-01-27	3000	27	60	0	20	20/49,5	9	1,1	M4	6524	588	290	32,40 EUR
NS-01-27-UNGEBOHRT	3000	27	0	0	0		9	1,1	0	6524	588	290	29,49 EUR
NS-01-27-AR	3000	27	60	0	20	20/49,5	9	1,1	M4	6524	588	290	38,89 EUR

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

For unbored rails please indicate "Unbored" in the remark.
* for cylinder screw with low head

Version 01: Carriage with through bore

Order no.	Designation	Weight of carriage
		[g]
NW-01-27	Carriage clipped on	10,8	4,29 EUR
NW-01-27-HT	Carriage clipped on, temperatures up to 130°C	10,8	10,74 EUR
NW-01-27-P	Carriage clipped on with pretension	10,8	4,30 EUR
NW-01-27-LLY	Carriage clipped on, floating bearing y-direction	10,8	4,30 EUR
NW-01-27-LLZ	Carriage clipped on, floating bearing z-direction	10,8	4,30 EUR
NW-01-27-LLYZ	Carriage clipped on, floating bearing y and z-direction	10,8	4,30 EUR

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

Version 01: Dimensions [mm] - guide carriages

Part. No.	H	A	C	C1	C2	A2	H2	K4	Spmin.	DpØmin.	Weight
	±0,35										[g/m]
NW-01-27	9,5	14	40	30	20	0	1,5	0	0	0	10,8
NW-01-27-HT	9,5	14	40	30	20	0	1,5			0	10,8
NW-01-27-P	9,5	14	40	30	20	0	1,5		0	0	10,8
NW-01-27-LLY	9,5	14	40	30	20	0	1,5		0	0	10,8
NW-01-27-LLZ	9,5	14	40	30	20	0	1,5		0	0	10,8
NW-01-27-LLYZ	9,5	14	40	30	20	0	1,5		0	0	10,8

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

Version 11: Carriage with through hole, injection-molded

Order no.	Designation	Weight of carriage
		[g]
NW-11-27-80	Carriage with plain hole	25	8,60 EUR
NW-11-27	Moulded carriage	10,8	4,29 EUR
NW-11-27-LLY	Moulded carriage, floating bearing y-direction	10,8	4,30 EUR
NW-11-27-LLZ	Moulded carriage, floating bearing z-direction	10,8	4,30 EUR
NW-11-27-LLYZ	Moulded carriage, floating bearing y und z-direction	10,8	4,30 EUR

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

Version 11: Dimensions [mm] - guide carriages

Part. No.	H	A	C	C1	C2	A2	H2	K4	Spmin.	DpØmin.	Weight
	±0,35										[g/m]
NW-11-27-80	9,5	14	80	76	60	0	1,2	-	5	6,5	25
NW-11-27	9,5	14	34	30	20	0	1,5		0	0	10,8
NW-11-27-LLY	9,5	14	34	30	20	0	1,5		0	0	10,8
NW-11-27-LLZ	9,5	14	34	30	20	0	1,5		0	0	10,8
NW-11-27-LLYZ	9,5	14	34	30	20	0	1,5		0	0	10,8

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

Ordering of a complete system

Configuration in few steps:

1. Selection of the number of carriages
2. Selection of the type of carriagel
3. Entry of the rail length in mm
4. Selection of the carriage options
5.

Hint:

Detailed information can be found below in the drawings as well as in the below-mentioned pages. You can obtain precise specifications on the floating bearing options within the design rules.

1

no floating bearing

2

Floating bearing in z-direction

3

Floating bearing in y-direction

4

Floating bearing in yz-direction
