drylin® E linear actuator delivered in 24 h

You are now leaving igus.si

The selection of the country/region page can influence various factors such as price, shipping options and product availability.

When switching pages, we will try to match the items in your shopping cart with those available for your country.
Please check your shopping cart after switching, thank you!

Part No.	Max. load	Max. speed	Motor	Encoder	ls	L	Usable can be used
DLE-LA-0001	50	6,35	NEMA11	-	DST 6,35x5,08	115	100	183,02 EUR
DLE-LA-0002	50	6,35	NEMA11	X	DST 6,35x5,08	115	100	313,56 EUR
DLE-LA-0003	100	15	NEMA17	-	DST 8x15	170	150	200,29 EUR
DLE-LA-0004	100	15	NEMA17	X	DST 8x15	170	150	338,40 EUR
DLE-LA-0005	500	9	NEMA23	-	DST 10x12	225	200	318,86 EUR
DLE-LA-0006	500	9	NEMA23	X	DST 10x12	225	200	442,15 EUR

Part No.	L1	L2	L3	B1	B2	D2	D3	nb1	nb2	nd2	nd3	nd4
DLE-LA-0001	51	15,2	2	28,2	23	M2,5	22	15	5	13	25	19	183,02 EUR
DLE-LA-0002	51	15,2	2	28,2	23	M2,5	22	15	5	13	25	19	313,56 EUR
DLE-LA-0003	49	16	2	42,3	31	M3	22	20	8	20	36	28	200,29 EUR
DLE-LA-0004	49	16	2	42,3	31	M3	22	20	8	20	36	28	338,40 EUR
DLE-LA-0005	76	16	1,6	56,4	47,14	5	38,1	25	10	25	42	34	318,86 EUR
DLE-LA-0006	76	16	1,6	56,4	47,14	5	38,1	25	10	25	42	34	442,15 EUR

Country/Region

By selecting your country you will be shown local offers and information.

Language settings

Select preferred language:

Page not found

The selected page is not available for . Would you like to switch to the country's homepage instead?

Cancel

Okay

Shopping Cart

The selected article has been added to your shopping cart.
From here you can initiate enquiries or orders.

Continue purchasing

Change to shopping cart

Shopping Cart

It was not possible to add the selected article to the shopping cart.

Okay

Please choose your delivery location

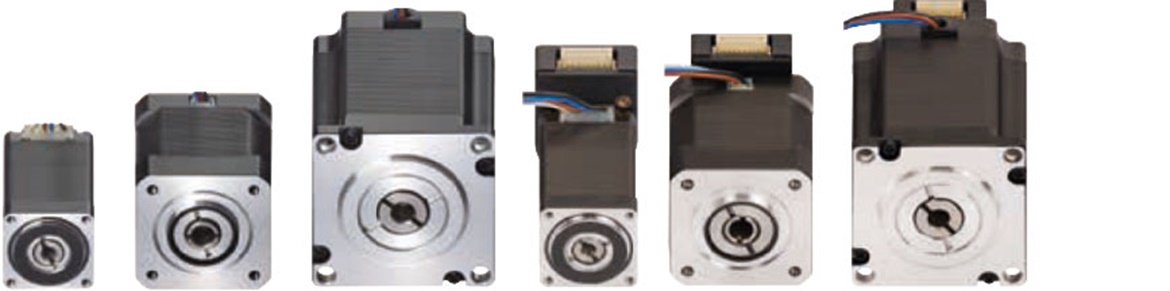

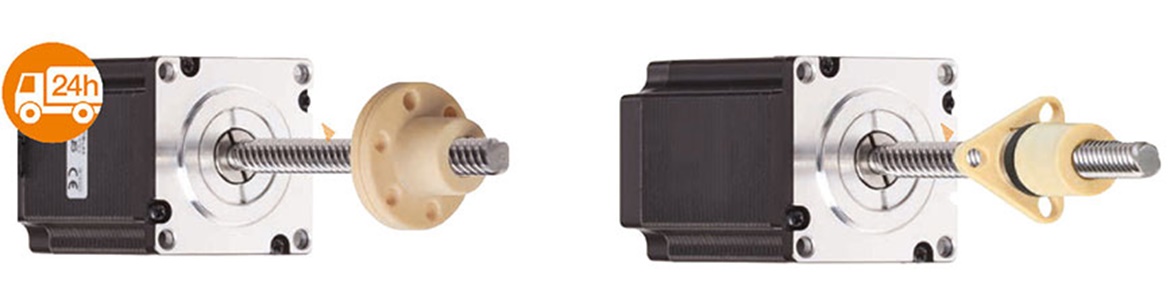

drylin® E linear actuators – ready to ship in 24hrs

More about selected part:

More about selected part:

Part No.	Max. load	Max. speed	Motor	Encoder	ls	L	Usable can be used
	[N]	[m/min]				+1/-3 mm*
DLE-LA-0001	50	6,35	NEMA11	-	DST 6,35x5,08	115	100	183,02 EUR
DLE-LA-0002	50	6,35	NEMA11	X	DST 6,35x5,08	115	100	313,56 EUR
DLE-LA-0003	100	15	NEMA17	-	DST 8x15	170	150	200,29 EUR
DLE-LA-0004	100	15	NEMA17	X	DST 8x15	170	150	338,40 EUR
DLE-LA-0005	500	9	NEMA23	-	DST 10x12	225	200	318,86 EUR
DLE-LA-0006	500	9	NEMA23	X	DST 10x12	225	200	442,15 EUR

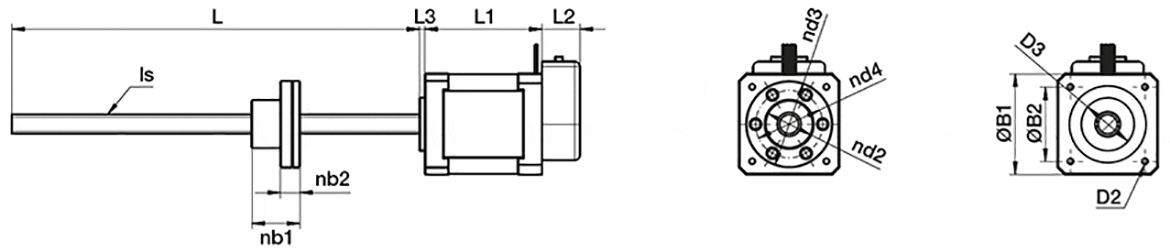

Part No.	L1	L2	L3	B1	B2	D2	D3	nb1	nb2	nd2	nd3	nd4
	+1mm
DLE-LA-0001	51	15,2	2	28,2	23	M2,5	22	15	5	13	25	19	183,02 EUR
DLE-LA-0002	51	15,2	2	28,2	23	M2,5	22	15	5	13	25	19	313,56 EUR
DLE-LA-0003	49	16	2	42,3	31	M3	22	20	8	20	36	28	200,29 EUR
DLE-LA-0004	49	16	2	42,3	31	M3	22	20	8	20	36	28	338,40 EUR
DLE-LA-0005	76	16	1,6	56,4	47,14	5	38,1	25	10	25	42	34	318,86 EUR
DLE-LA-0006	76	16	1,6	56,4	47,14	5	38,1	25	10	25	42	34	442,15 EUR
